Model: S301

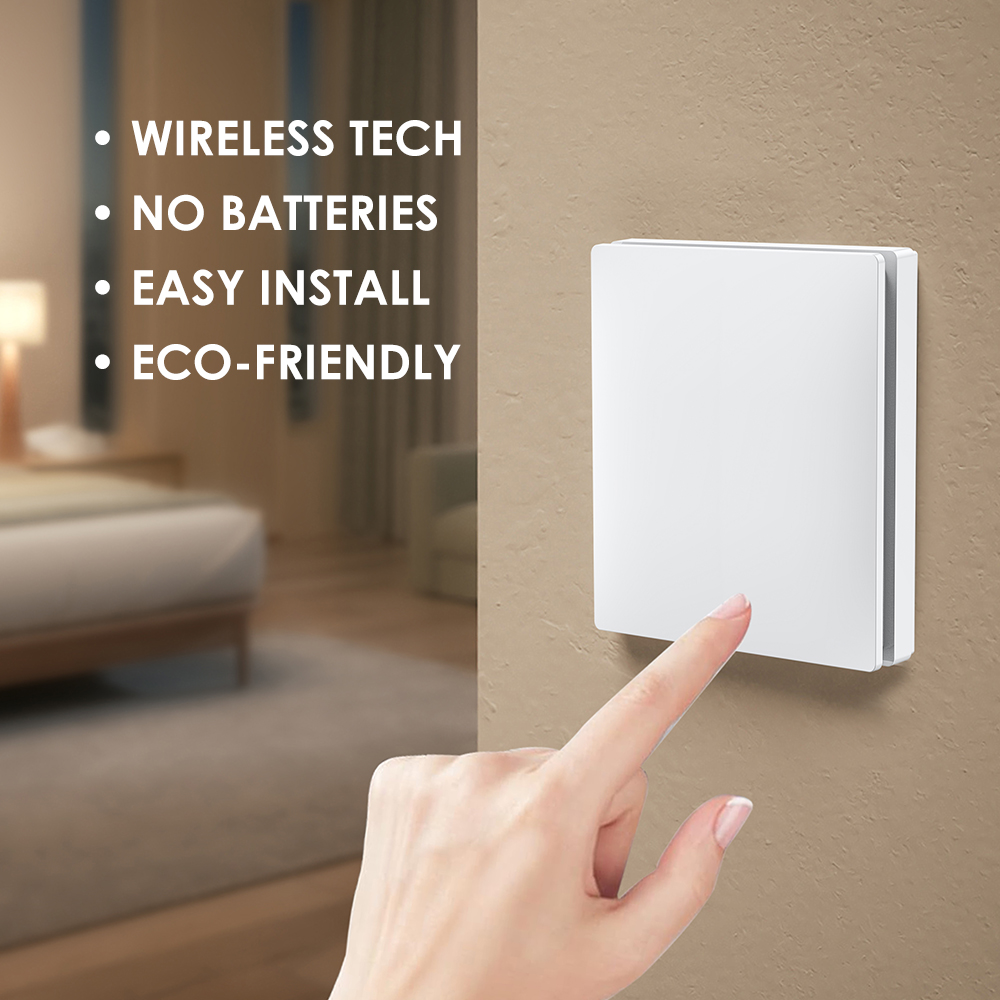

ECO-NEWLEAF Kinetic Switches are completely wireless and battery-free. Pressing the switch creates enough energy to transmit wireless RF signal to the receiver to control lights and other devices on/off or dimming.
The wireless kinetic switch can be placed anywhere you want, mounted on the wall, or used as a remote. There’s no need for drilling holes on the wall and no running electrical wires, which greatly saves time, energy, and money!
• Kinetic energy - no wiring, no battery required
• Replace existing switches or add a new one where you like
• Easy to install
• On/off and dimming function
• Waterproof (IP65 rated)
• One receiver can be paired with up to 10 switches
| Power Source | Self-powered when switch is pressed |
| Work Type | Push Button |
| Frequency | RF 433MHz |
| Number of Keys | 1/2/3 Gang |
| Range | 25m indoors, 80m outdoors |
| Color | White/Black/Silver/Gray/Gold |
| Life Time | ≥ 100,000 times |
| Dimensions | L86 x W86 x H16mm |
| Control Method | Pairing with ECO-NEWLEAF receivers |
| Warranty | 2-year replacement |
