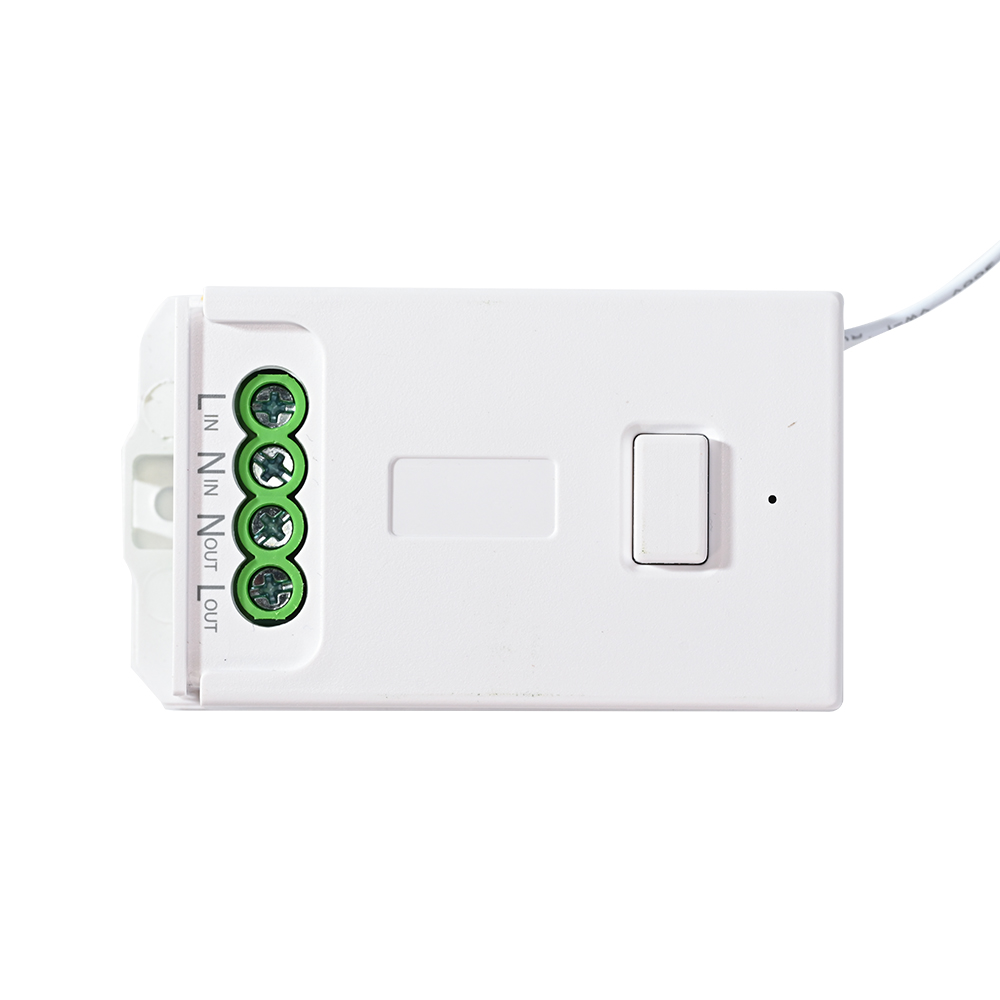

Model: D2100R
The ECO-NEWLEAF RF Dimming Receivers works with the kinetic switch to give you an additional way to control your light fixtures, without the hassle of wiring. Once connected, you can use the kinetic switch to turn on/off, or dim your lights.
The kinetic switches are wireless so you can place the controls exactly where you want them. Completely portable and easy to setup. Receivers are simply wired between the power and the fixture, and then stored in the light box behind. There’s no need for drilling holes on the wall and no running electrical wires, which greatly saves time, energy, and money!
• Trailing edge dimmer
• 200W Load capacity
• Works with the kinetic switch for wireless lighting control
• On/off and dimming function

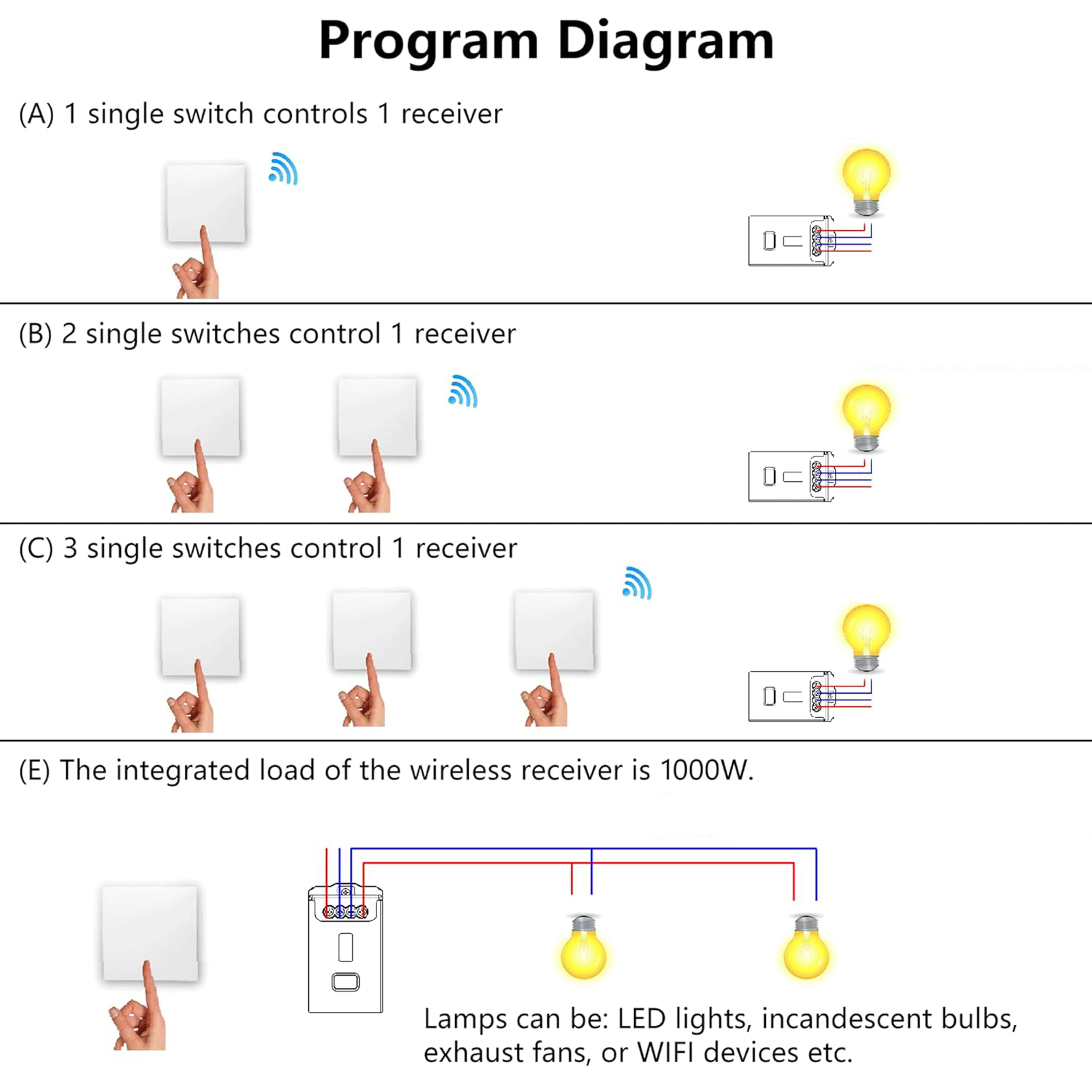

• One channel can work with up to 10 switch panels
| Power Supply | AC 100-240V, 50/60Hz |
| Rated Current | 5A |
| Max Load | 1000W |
| Outer Shell Material | PC V-0(fireproof) |
| Frequency | RF 433MHz |
| Range | 25m indoors, 80m outdoors |
| Working Temperature | -10℃ ~ +55℃ |

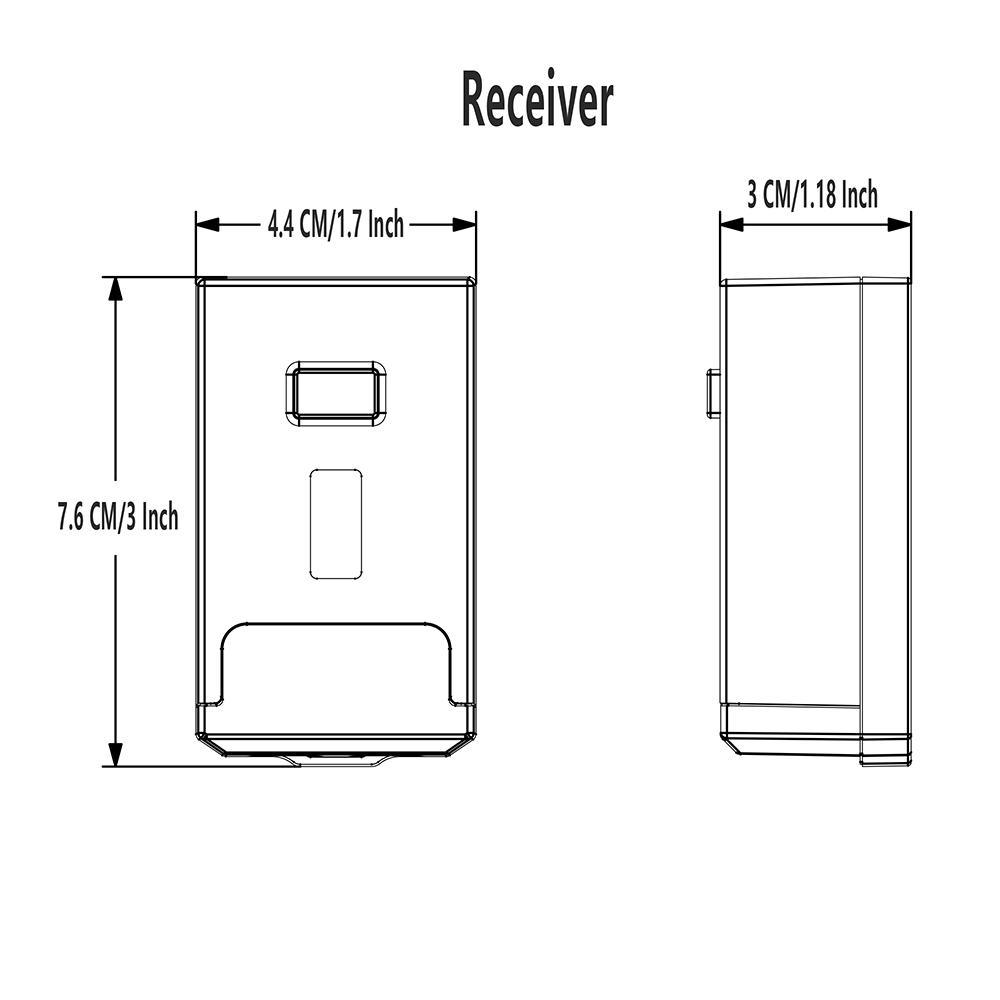

| Dimensions | L44 x W44 x H22mm |
| Pairing Capacity | Max 10 wireless switches |
| Warranty | 2-year replacement |
